Fujitsu SET-ARTH24KHTA 7.1kW High Static Ducted AC System 1 Phase
$3,469.00
[alpus_aprs_ai_summary]
- Description
- Additional information
- Reviews (0)
Description
7.1 kW Cooling
8.0 kW Heating

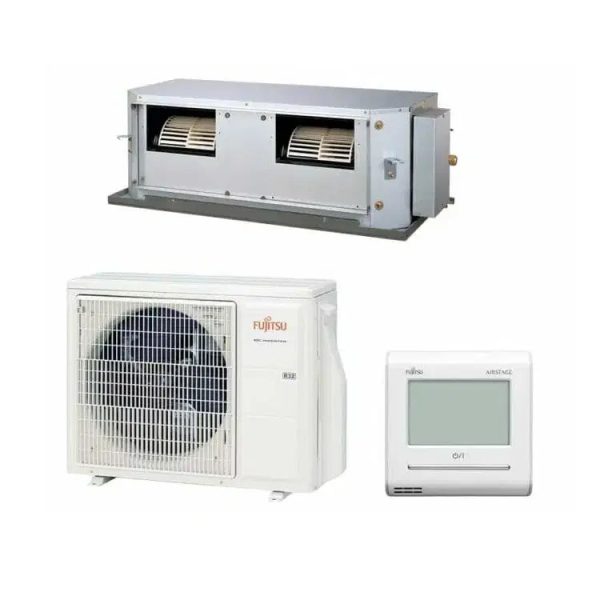

Fujitsu SET-ARTH24KHTA 7.1kW High Static Ducted Air Conditioning System – 1 Phase
Includes
Indoor Unit ARTH24KHTA | Outdoor Unit AOTH24KBTA
Wired Backlit Controller : UTY-RNRT
The High Static R32 Ducted models are up to 19.7 per cent more energy efficient across the range compared to previous models. The High Static R32 ducted range features the same lightweight and compact indoor unit chassis design to enable the continuation of installation ease and flexibility.
Specifications:
SET: SET-ARTH24KHTA
| Indoor unit | ARTH24KHTA |
| Outdoor unit | AOTH24KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz |
230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) |
7.10 (1.8 – 8.1) |
| Heating Capacity kW (Rated (Min – Max)) |
8.00 (2 – 9.1) |
| Input Power Cooling kW (Rated (Max)) |
2.14 (2.53) |
| Input Power Heating kW (Rated (Max)) |
2.05 (2.45) |
| EER Cooling kW/kW |
3.32 |
| COP Heating kW/kW |
3.9 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) |
3 / 3 / 3 |
| Star Rating Heating (0-10) (Hot / Average / Cold) |
3 / 2.5 / 1.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) |
4.912 / 4.611 / 4.875 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) |
4.825 / 4.11 / 3.444 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) |
5.299 / 5.489 / 5.931 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) |
4.831 / 4.41 / 3.707 |
| Running Current amps (Cooling / Heating) |
9.4 / 9 |
| Moisture Removal l/hr |
0.5 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) |
34 / 27 |
| Indoor Sound Pressure Heating dBA (High / Quiet) |
34 / 27 |
| Outdoor Sound Pressure dBA (Cooling / Heating) |
48 / 50 |
| Outdoor Sound Power dBA |
68 |
| Static Pressure Range PA (Min to Max) |
60 to 210 |
| Air Circulation (Indoor – High Fan) Cooling l/sec |
500 |
| Air Circulation (Indoor – High Fan) Heating l/sec |
500 |
| Indoor Unit Dimensions mm (Height x Width x Depth) |
400 x 1050 x 500 |
| Indoor Unit Weight kg |
38.00 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) |
716 x 820 x 315 |
| Outdoor Unit Weight kg |
42.00 |
| Piping Connects mm Ø (Liquid / Gas) |
6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) |
30 (20) |
| Max Height Difference m |
25 |
| Operation Range Cooling °CDB (Min to Max) |
-10 to 50 |
| Operation Range Heating °CDB (Min to Max) |
-15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g |
1,250 |
Additional information
| Weight | 90.0 kg |
|---|
