DAIKIN FDYQ200LC-TY 20kW Premium Inverter Ducted System | 3 Phase
$9,190.00 – $9,590.00
[alpus_aprs_ai_summary]
- Description
- Additional information
- Reviews (0)
Description

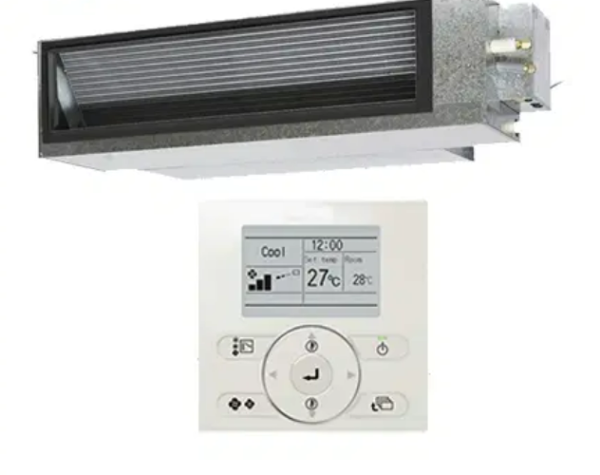

DAIKIN FDYQ200LC-TY 20kW Premium Inverter Ducted System | 3 Phase
Indoor FDYQ200LCV1
Outdoor RZYQ8TY1
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
20.0kW Cooling Capacity
22.4kW Heating Capacity
Specifications:
| INDOOR UNIT | FDYQ200LCV1 | |
| OUTDOOR UNIT | RZYQ8TY1 | |
| Rated Capacity | Cool (kW) | 20.0 |
| Heat (kW) | 22.4 | |
| Capacity Range | Cool (kW) | 12.0-22.4 |
| Heat (kW) | 13.4-25.0 | |
| Power Input (Rated) | Cool (kW) | 6.08 |
| Heat (kW) | 6.17 | |
| E.E.R/C.O.P | C/H | 3.29/3.63 |
| TCSPF (Residential) | Hot/Average/Cold | – |
| HSPF (Residential) | Hot/Average/Cold | – |
| Airflow Rate (Nominal/Max) | l/s | 1200/1300 |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 44.0/44.0 |
| Piping Length | m | 150 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 470x1400x997 |
| Outdoor (mm) | 1657x930x765 | |
| Weight | Indoor (kg) | 79 |
| Outdoor (kg) | 192 | |
| Power Supply | V/Hz | 3 Phase, 380-415V, 50Hz |
| Compressor Type | Hermetically Sealed Scroll Type | |
| Refrigerant | R410A | |
| Pipe Sizes | Liquid (mm) | 9.5 (Brazed) |
| Gas (mm) | 19.1 (Brazed) | |
| Drain (mm) | BSP 3/4 inch Internal Thread | |
| Supply Air Opening | mm (HxW, Flange) | 350×1118 |
| Return Air Opening | mm | 393×1118 (Flange) |
| Outdoor Operating Range | Cool (°CDB) | -5 to 49 |
| Heat (°CWB) | -20 to 16 | |
| EPA Sound Power Level | dBA | – |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 56/56 |
Additional information
| Weight | 288.0 kg |
|---|---|
| Controller | Standard Nav Ease Controller, Up to 4 Zones (230-240v), Up to 4 Zones (24v), Up to 8 Zones (230-240v), Up to 8 Zones (24v) |
